Vacuum Veneer Press Air Powered - For pressing, veneering and laminaintng

Venturi style vacuum sources

spacer line
  1. NU-Matic ALL-in-ONE Automatic system for veneering/laminating & clamping completely pneumatic

  2. NU-Matic Automatic system for veneering/laminating completely pneumatic

  3. VAK-Matic ALL-in-ONE Foot operated Automatic system for veneering/laminating and clamping

  4. VAK-Matic  Automatic system for veneering and laminating

  5. VP"s and Bag Kits Hand-OperatedManual Veneering Systems

  6. PED-Vak Foot-Operated Clamping Systems

  7. Hand Held Clamping System

 Nu-Matic ALL-in-ONE Systems
Veneering/Laminating & Clamping. 2 YEAR WARRANTY

spacer line


The ALL-in-ONE System combines the best features of automatic veneering with the speed and accuracy of foot operated clamping. This is the only product of its kind on the market, and its the choice of the professional woodworker. All models can be upgraded to faster models without losing your original investment.

Automatic Veneering & Laminating
This system is equipped with an adjustable vacuum sensor which automatically regulates the vacuum level within the veneer press. If the pressure drops, the system automatically turns on until the desired vacuum level is achieved, and then shuts off. The vacuum sensor can be adjusted down to reduce the pressure in the vacuum press. When veneering, the foot pedal allows you to stop the vacuum and adjust the work piece in the veneering bag, and then restart the vacuum while holding the work piece in place. This is an important feature when doing curved or complex work.

Foot Operated Clamping
The Foot Pedal will dramatically increase the speed of all of your clamping applications. A tap on the foot pedal will create up to 1,800 lbs./sq.ft. of strong holding force. The vacuum stays on even when your foot is removed from the pedal. Tap the foot pedal to the off position and the vacuum will bleed away, causing your work piece to be instantly released. The foot pedal frees your hands to hold your router or align your work piece. Production can be increased up to 300% with this clamping Feature.
Automatic Vacuum Veneering and Laminating Systems - venturi driven
Complete System Includes
- NU-Matic Controller
- Foot Switch for hands free operation
- Polyurethane or Vinyl Vacuum veneering Bag
- 100" of VAK-Tape
- A set of Quick Disconnects
- A Pinch Klamp
- 1 or 2 Vacuum Connector Assembly - VCA(6)
- 10" or 20" of VAK Hose

"PRICES" Below include vacuum source and bag complete system.

System
Description
Bag
Size
Poly
30 Mil
Poly
20 Mil*
Vinyl
30 Mil
Vinyl
20 Mil
spacer line

Mega Industrial NU20FS
$1,275 (vacuum source only)

  • 7 - 10 H.P. Compressor
  • 26 C.F.M @ 85 P.S.I.
  • 20 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,875 n/a n/a
12'6" x 52" $1,835 $1,735 $1,510 $1,475
10'6" x 52" $1,765 $1,680 $1,500 $1,460
8'6" x 52" $1,695 $1,595 $1,485 $1,435
spacer line
super Industrial NU15FS
$1,175 (vacuum source only)
  • 5 - 10 H.P. Compressor
  • 20 C.F.M @ 85 P.S.I.
  • 15 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,775 n/a n/a
12'6" x 52" $1,735 $1,635 $1,410 $1,375
10'6" x 52" $1,665 $1,580 $1,400 $1,360
8'6" x 52" $1,595 $1,495 $1,385 $1,335
spacer line
Industrial NU10FS
$1,025 (vacuum source only)
  • 5 - 7 H.P. Compressor
  • 13 C.F.M @ 85 P.S.I.
  • 10 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,625 n/a n/a
12'6" x 52" $1,585 $1,485 $1,260 $1,225
10'6" x 52" $1,515 $1,430 $1,250 $1,210
8'6" x 52" $1,445 $1,345 $1,235 $1,185
spacer line
superPro NU6FS
$825 (vacuum source only)
  • 2 - 4 H.P. Compressor
  • 6.5 C.F.M @ 85 P.S.I.
  • 5.2 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,425 n/a n/a
12'6" x 52" $1,385 $1,285 $1,060 $1,025
10'6" x 52" $1,315 $1,230 $1,050 $1,010
8'6" x 52" $1,245 $1,145 $1,035 $985
5'3" x 52" $1,110 $1,065 $945 $925
spacer line
Pro NU4FS
$725 (vacuum source only)
  • 1 - 2 H.P. Compressor
  • 4 C.F.M @ 85 P.S.I.
  • 3.2 C.F.M of Vacuum Flow
10'6" x 52" $1,215 $1,130 $950 $910
8'6" x 52" $1,145 $1,045 $935 $885
5'3" x 52" $1,010 $965 $845 $825
Pro NU2FS
$650 (vacuum source only)
  • .75 - 1 H.P. Compressor
  • 2 C.F.M @ 85 P.S.I.
  • 1.8 C.F.M of Vacuum Flow
8'6" x 52" $1,070 $970 $860 $810
5'3" x 52" $935 $890 $770 $750
4' x 27" $835 $800 $755 $730

* Note that only the 52" & 72" 20 Mil Polyurethane vacuum bags are seamless.
Click Here to Return to Top of Page


NU-Matic Systems
Veneering & Laminating  2 YEAR WARRANTY

spacer line


The NU-Matic system is an automatic air-powered vacuum veneering system. This system will automatically regulate the vacuum level within the vacuum press. It is an all air system meaning there is no electricity required. All models can be upgraded to faster models without losing your original investment.

Automatic Veneering & Laminating
This system is equipped with an adjustable vacuum sensor which automatically regulates the vacuum level within the vacuum press. If the pressure drops, the system automatically turns on until the desired vacuum level is achieved, and then shuts off. The vacuum sensor can be adjusted down to reduce the pressure in the vacuum bag.

All pnuematic automatic vacuum veneering and laminating system - venturi driven
Complete System Includes
- NU-Matic Controller
- Polyurethane or Vinyl Vacuum Bag
- 1 or 2 Vacuum Connector Assembly - VCA(6)
- 10' or 20' of Vacuum Hose

Prices Below include vacuum source and bag, complete system.

System
Description
Bag
Size
Poly
30 Mil
Poly
20 Mil*
Vinyl
30 Mil
Vinyl
20 Mil
spacer line
Mega Industrial NU-20
$1,100 (vacuum source only)
  • 7 - 10 H.P. Compressor
  • 26 C.F.M @ 85 P.S.I.
  • 20 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,700 n/a n/a
12'6" x 52" $1,660 $1,560 $1,335 $1,300
10'6" x 52" $1,590 $1,505 $1,325 $1,285
8'6" x 52" $1,520 $1,420 $1,310 $1,260
spacer line
super Industrial NU-15
$1,000 (vacuum source only)
  • 5 - 10 H.P. Compressor
  • 20 C.F.M @ 85 P.S.I.
  • 15 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,600 n/a n/a
12'6" x 52" $1,560 $1,460 $1,235 $1,200
10'6" x 52" $1,490 $1,405 $1,225 $1,185
8'6" x 52" $1,420 $1,320 $1,210 $1,160
spacer line
Industrial NU-10
$850 (vacuum source only)
  • 5 - 7 H.P. Compressor
  • 13 C.F.M @ 85 P.S.I.
  • 10 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,450 n/a n/a
12'6" x 52" $1,410 $1,310 $1,085 $1,050
10'6" x 52" $1,340 $1,255 $1,075 $1,035
8'6" x 52" $1,270 $1,170 $1,060 $1,010
spacer line
super Pro NU-6
$650 (vacuum source only)
  • 2 - 4 H.P. Compressor
  • 6.5 C.F.M @ 85 P.S.I.
  • 5.2 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,250 n/a n/a
12'6" x 52" $1,210 $1,110 $885 $850
10'6" x 52" $1,140 $1,055 $875 $835
8'6" x 52" $1,070 $970 $860 $810
5'3" x 52" $935 $890 $770 $750
spacer line
Pro NU-4
$550 (vacuum source only)
  • 1 - 2 H.P. Compressor
  • 4 C.F.M @ 85 P.S.I.
  • 3.2 C.F.M of Vacuum Flow
12'6" x 52" $1,110 $1,010 $785 $750
10'6" x 52" $1,040 $955 $775 $735
8'6" x 52" $970 $870 $760 $710
5'3" x 52" $835 $790 $670 $650
4' x 27" $735 $700 $655 $630
spacer line
Standard NU-2
$475 (vacuum source only)
  • .75 - 1 H.P. Compressor
  • 2 C.F.M @ 85 P.S.I.
  • 1.8 C.F.M of Vacuum Flow
8'6" x 52" $895 $795 $685 $635
5'3" x 52" $760 $715 $595 $575
4' x 27" $660 $625 $580 $555
* Note that only the 52" & 72" 20 Mil Polyurethane bags are seamless.
Click Here to Return to Top of Page

VAK-Matic ALL-in-ONE Systems
Veneering & Laminating & Clamping

spacer line


The VAK-Matic ALL-in-ONE system combines the best features of automatic veneering with the speed and accuracy of foot operated clamping. This is the only product of its kind on the market, and its the choice of the professional woodworker. All models can be upgraded to faster models without losing your original investment.

Automatic Veneering & Laminating
This system is equipped with an adjustable vacuum sensor which automatically regulates the vacuum level within the vacuum press. If the pressure drops, the system automatically turns on until the desired vacuum level is achieved, and then shuts off. The vacuum sensor can be adjusted down to reduce the pressure in the bag. When veneering, the foot pedal allows you to stop the vacuum and adjust the work piece in the bag, and then restart the vacuum while holding the work piece in place. This is an important feature when doing curved or complex work.

Foot Operated Klamping
The Foot Pedal will dramatically increase the speed of all of your clamping applications. A tap on the Foot Pedal will create up to 1,800 lbs./sq.ft. of strong holding force. The vacuum stays on even when your foot is removed from the pedal. Tap the Foot pedal to the OFF position and the vacuum will bleed away, causing your work piece to be instantly released. The foot pedal frees your hands to hold your router or align your work piece. Production can be increased up to 300% with this clamping Feature.
Automatic vacuum veneering and laminating system - venturi driven Complete System Includes
- VAK-Matic Controller
- Foot Switch for hands free operation
- Polyurethane or Vinyl  Vacuum Bag
- 100' of VAK-Tape
- A set of Quick Disconnects
- A Pinch Klamp
- A VAKuum Connector Assembly - VCA(6)
- 10' of VAK Hose

Prices Below include vacuum source and bag, complete system.

System
Description
Bag
Size
Poly
30 Mil
Poly
20 Mil*
Vinyl
30 Mil
Vinyl
20 Mil
spacer line
super Industrial VM15FS
$1,095
(vacuum source only)
  • 5 - 10 H.P. Compressor
  • 20 C.F.M @ 85 P.S.I.
  • 15 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,695 n/a n/a
12'6" x 52" $1,655 $1,555 $1,330 $1,280
10'6" x 52" $1,585 $1,500 $1,320 $1,280
8'6" x 52" $1,515 $1,415 $1,305 $1,255
spacer line
Industrial VM10FS
$895 (vacuum source only)
  • 5 - 7 H.P. Compressor
  • 13 C.F.M @ 85 P.S.I.
  • 10 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,495 n/a n/a
12'6" x 52" $1,455 $1,355 $1,130 $1,095
10'6" x 52" $1,385 $1,300 $1,120 $1,080
8'6" x 52" $1,315 $1,215 $1,105 $1,055
spacer line
superPro VM6FS
$690(vacuum source only)
  • 2 - 4 H.P. Compressor
  • 6.5 C.F.M @ 85 P.S.I.
  • 5.2 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,290 n/a n/a
12'6" x 52" $1,250 $1,150 $925 $890
10'6" x 52" $1,180 $1,095 $915 $875
8'6" x 52" $1,110 $1,010 $900 $850
5'3" x 52" $975 $930 $810 $790
spacer line
Pro VM4FS
$610 (vacuum source only)
  • 1 - 2 H.P. Compressor
  • 4 C.F.M @ 85 P.S.I.
  • 3.2 C.F.M of Vacuum Flow
10'6" x 52" $1,100 $1,015 $835 $795
8'6" x 52" $1,030 $930 $820 $770
5'3" x 52" $895 $850 $730 $710
spacer line
Pro VM2FS
$565 (vacuum source only)
  • .75 - 1 H.P. Compressor
  • 2 C.F.M @ 85 P.S.I.
  • 1.8 C.F.M of Vacuum Flow
8'6" x 52" $985 $885 $770 $725
5'3" x 52" $850 $805 $685 $665
4' x 27" $750 $715 $670 $645

* Note that only the 52" & 72" 20 Mil Polyurethane bags are seamless.
Click Here to Return to Top of Page

VAK-Matic Systems
Veneering & Laminating

spacer line


The VAK-Matic system is an automatic air-powered vacuum veneering system. This system will automatically regulate the vacuum level within the vacuum bag. It is very similar to the ALL-in-One system, but without the foot operated clamping capabilities. It is the choice of professionals interested in veneering and laminating, and can be upgraded to an ALL-in-ONE system at anytime without losing your original investment.

Automatic Veneering & Laminating
This system is equipped with an adjustable vacuum sensor which automatically regulates the vacuum level within the vacuum bag. If the pressure drops, the system automatically turns on until the desired vacuum level is achieved, and then shuts off. The vacuum sensor can be adjusted down to reduce the pressure in the bag.

Klamping
This system offers vacuum clamping, however it does not include a Foot Pedal or other accessories like the ALL-in-ONE System. The operator must turn the clamp button on and off for all clamping applications, and must also release the work piece with the aid of a manual bleeder valve. The VAK-Matic system is recommended for Professionals who intend to use their system primarily for veneering and laminating.
Automatic vacuum veneering and laminating system - Venturi driven
Complete System Includes
- VAK-Matic Controller
- Polyurethane or Vinyl vacuum Bag
- A VAKuum Connector Assembly - VCA(6)
- 10' of VAK Hose

"PRICES" Below include vacuum source and bag, complete system.

System
Description
Bag
Size
Poly
30 Mil
Poly
20 Mil*
Vinyl
30 Mil
Vinyl
20 Mil
spacer line
super Industrial VM15
$950 (vacuum source only)
  • 5 - 10 H.P. Compressor
  • 20 C.F.M @ 85 P.S.I.
  • 15 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,550 n/a n/a
12'6" x 52" $1,510 $1,410 $1,185 $1,150
10'6" x 52" $1,440 $1,355 $1,175 $1,135
8'6" x 52" $1,370 $1,270 $1,160 $1,110
spacer line
Industrial VM10
$750 (vacuum source only)
  • 5 - 7 H.P. Compressor
  • 13 C.F.M @ 85 P.S.I.
  • 10 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,350 n/a n/a
12'6" x 52" $1,310 $1,210 $985 $950
10'6" x 52" $1,240 $1,155 $975 $935
8'6" x 52" $1,170 $1,070 $960 $910
spacer line
super Pro VM6
$545 (vacuum source only)
  • 2 - 4 H.P. Compressor
  • 6.5 C.F.M @ 85 P.S.I.
  • 5.2 C.F.M of Vacuum Flow
10'6" x 72" n/a $1,145 n/a n/a
12'6" x 52" $1,105 $1,005 $780 $745
10'6" x 52" $1,035 $950 $770 $730
8'6" x 52" $965 $865 $755 $705
5'3" x 52" $830 $785 $665 $645
spacer line
Pro VM4
$465 (vacuum source only)
  • 1 - 2 H.P. Compressor
  • 4 C.F.M @ 85 P.S.I.
  • 3.2 C.F.M of Vacuum Flow
12'6" x 52" $1,025 $925 $700 $665
10'6" x 52" $955 $870 $690 $650
8'6" x 52" $885 $785 $675 $625
5'3" x 52" $750 $705 $585 $565
4' x 27" $650 $615 $570 $545
spacer line
Standard VM2
$420 (vacuum source only)
  • .75 - 1 H.P. Compressor
  • 2 C.F.M @ 85 P.S.I.
  • 1.8 C.F.M of Vacuum Flow
8'6" x 52" $840 $740 $630 $580
5'3" x 52" $705 $660 $540 $520
4' x 27" $605 $570 $525 $500
* Note that only the 52" & 72" 20 Mil Polyurethane bags are seamless.
Click Here to Return to Top of Page

Manual Systems
Veneering and Laminating

spacer line


The Manual system is a good starter for those with limited funds, or those who just want to try veneering. This low cost alternative will allow the woodworker to try veneering and clamping. It will give the same high quality results as the ALL-in-ONE or VAK-Matic systems; however, it does require the operator to monitor the correct vacuum level within the bag. Remember this system can be upgraded to an automatic unit without losing your original investment in the VAK Pump.

Veneering & Laminating
This system is not equipped with a vacuum sensor to automatically regulate the correct vacuum level within the bag. The operator must periodically check the vacuum level within the bag by monitoring a gauge, and turning the pump ON & OFF accordingly.

Klamping
The Manual system can also be used for vacuum clamping. It offers hand operated clamping, where the operator must turn a hand valve 90 degrees in order to turn the pump ON & OFF. When the work piece is completed, it can be instantly released by turning the valve to the OFF position. The next piece can then be placed onto the vacuum jig to be clamped.

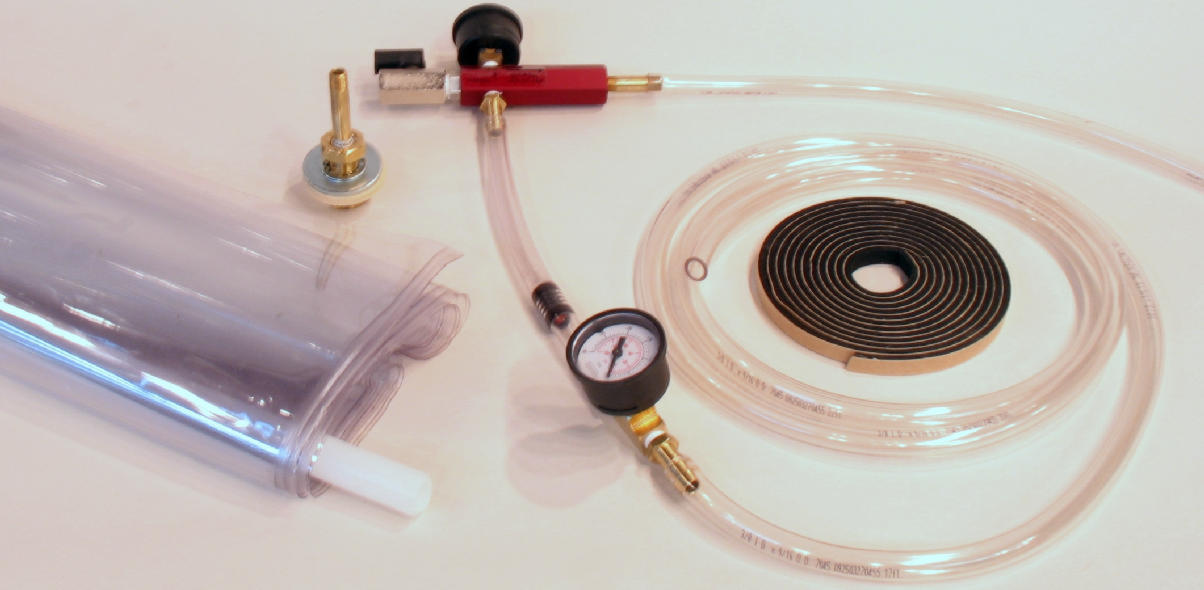

Manual vacuum veneering and laminating systems venturi driven
System Includes
- VAK Pump
- Polyurethane or Vinyl vacuum Bag
- A VAKuum Connector Assembly - VCA(6)
- VAK Hose
- Manifold with VAKuum Gauge
- A Check Valve
- 10'of VAK Tape for Making Klamping Jigs

"PRICES" Below include vacuum source and bag, complete system.

System
Description
Bag
Size
Poly
30 Mil
Poly
20 Mil*
Vinyl
30 Mil
Vinyl
20 Mil
spacer line
super Pro VP6
$190(vacuum source only)
  • 2 - 4 H.P. Compressor
  • 6.5 C.F.M @ 85 P.S.I.
  • 5.2 C.F.M of Vacuum Flow
10'6" x 52" $753 $668 $488 $448
8'6" x 52" $683 $583 $473 $423
5'3" x 52" $548 $503 $383 $363

spacer line
Pro VP4
$145 (vacuum source only)
  • 1 - 2 H.P. Compressor
  • 4 C.F.M @ 85 P.S.I.
  • 3.2 C.F.M of Vacuum Flow
8'6" x 52" $635 $535 $425 $375
5'3" x 52" $500 $455 $335 $315

spacer line
Standard VP2
$99 (vacuum source only)
  • .75 - 1 H.P. Compressor
  • 2 C.F.M @ 85 P.S.I.
  • 1.8 C.F.M of Vacuum Flow
8'6" x 52" $589 $489 $379 $329
5'3" x 52" $454 $409 $289 $269
4' x 27" $354 $319 $274 $249

* Note that only the 52" & 72" 20 Mil Polyurethane bags are seamless.
Click Here to Return to Top of Page


PED-VAK Systems
Klamping

spacer line

The Ped-VAK is the fastest and most economical vacuum clamping System available. It creates up to 1800 lbs./sq.ft. of clamping force and comes with a Foot Pedal for high speed production. The Foot Pedal allows your hands to be free to hold your router or adjust your work piece. It is the choice of Professional Woodworkers and Plastic Fabricators because it can increase clamping production by up to 300%.

Vacuum hold down and clamping system venturi driven
System Includes
- PED-VAK Controller
- 100' of VAK Tape
- 5' of VAK Hose
- Foot Pedal
- VAKuum Gauge
- Pressure Gauge


System
Description
Price Compressed
Air Required
Compressor
Required
Vacuum
Flow
spacer line
super Pro PV6 $320 6.5 C.F.M. @ 85 lbs. 2 - 4 H.P. 5.2 C.F.M.
Pro PV4 $280 4 C.F.M. @ 85 lbs. 1 - 2 H.P. 3.2 C.F.M.
Standard PV2 $250 2 C.F.M. @ 85 lbs. .75 - 1 H.P. 1.8 C.F.M.
Click Here to Return to Top of Page

Manual VAK Pumps
Klamping
spacer line

Manual VAK Pumps create the same holding force as PED-VAK systems; however, they do not include a foot pedal. These systems must be turned ON & OFF by twisting a valve 90 degrees. Manual VAK Pumps are great for occasional users who do not plan to use their system for production, or for those who have limited funds. Remember, any Manual VAK Pump can be upgraded to a PED-VAK system any time.
Venturi hold down vacuum source
System Includes
- VAK Pump
- VAKuum Gauge
- 5' of VAK Hose
- 10'of VAK Tape
- On\Off Valve
- Exhaust System

System
Description
Price Compressed
Air Required
Compressor
Required
Vacuum
Flow
spacer line
Industrial VP10 $320 13 C.F.M. @ 85 lbs. 5 - 7 H.P. 10 C.F.M.
super Pro VP6 $190 6.5 C.F.M. @ 85 lbs. 2 - 4 H.P. 5.2 C.F.M.
Pro VP4 $145 4 C.F.M. @ 85 lbs. 1 - 2 H.P. 3.2 C.F.M.
Standard VP2 $99 2 C.F.M. @ 85 lbs. .75 - 1 H.P. 1.8 C.F.M.
spacer line
Click Here to Return to Top of Page

link to follow us on twitterlink to follow us on facebooklink to follow us on google pluslink to follow us on tumblrlink to follow us on pinterestlink to follow us on linkedincheck out our blogclick here for our rss feed
Disclaimer
