Electric Systems |
 |
|
|

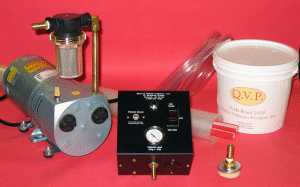

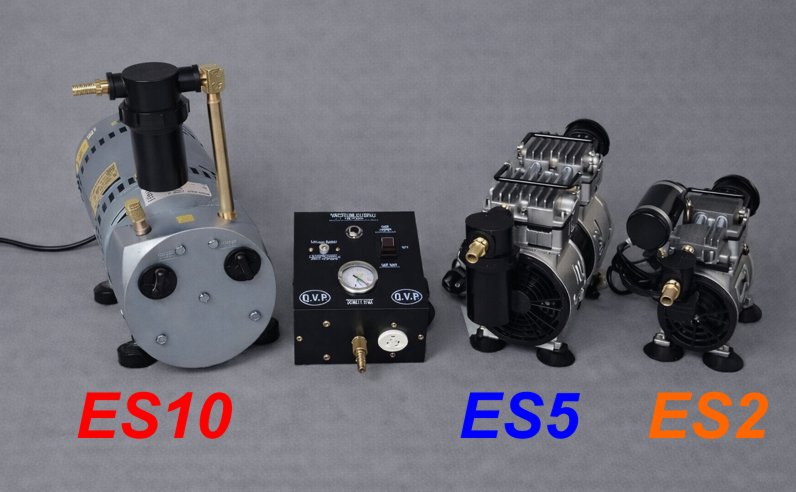

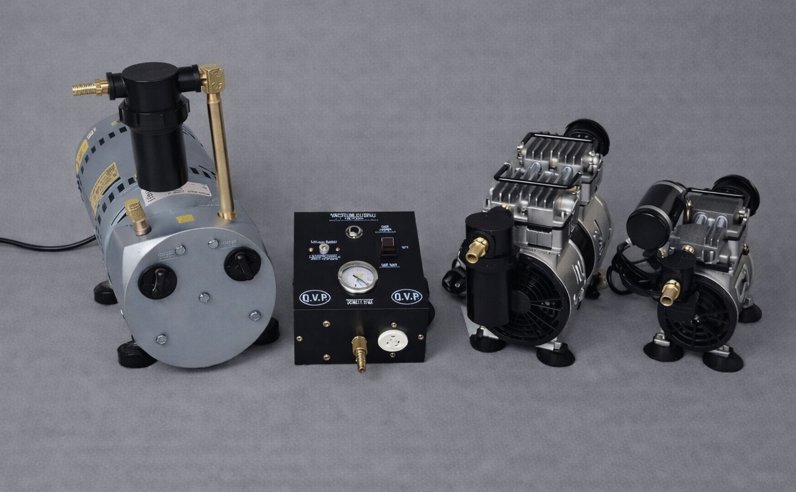

Automatic Electric Systems Veneering & Laminating |
|
Automatic Electric Systems use Rotary Vane Electric Vacuum Pumps to create vacuum and an Electric Controller to maintain the correct vacuum level. The Electric Controller is adjustable and Automatically Regulates the vacuum level within the Vacuum Bag or Frame Press. Rotary vane pumps produce 26.6" Hg. and are manufactured by a well respected company who specializes in producing high quality electric vacuum pumps. Quality VAKuum Products, Inc. builds their Electric Systems with the Pump and Electric Controller as separate units. This provides several advantages over a single unit built inside of a large metal box. First, keeping the units separate allows the woodworker to sit the pump on the floor or under a bench, allowing the controller to be place on top of the bench. The gauge is now easily seen by the operator and any adjustments to the pump can now be made easily. Also, the possibility of the pump overheating is dramatically reduced, especially in shops without air conditioning. Metal enclosures will retain heat, possibly causing the pumps thermal overload to react and shut off. If this happens the pressing could be lost. Q.V.P.'s design helps prevent this from happening.
The Automatic Electric System is the best system for those who
do not have an air compressor, or do not want an Air-Powered VAKuum System. |
| Click here for Individual Prices |

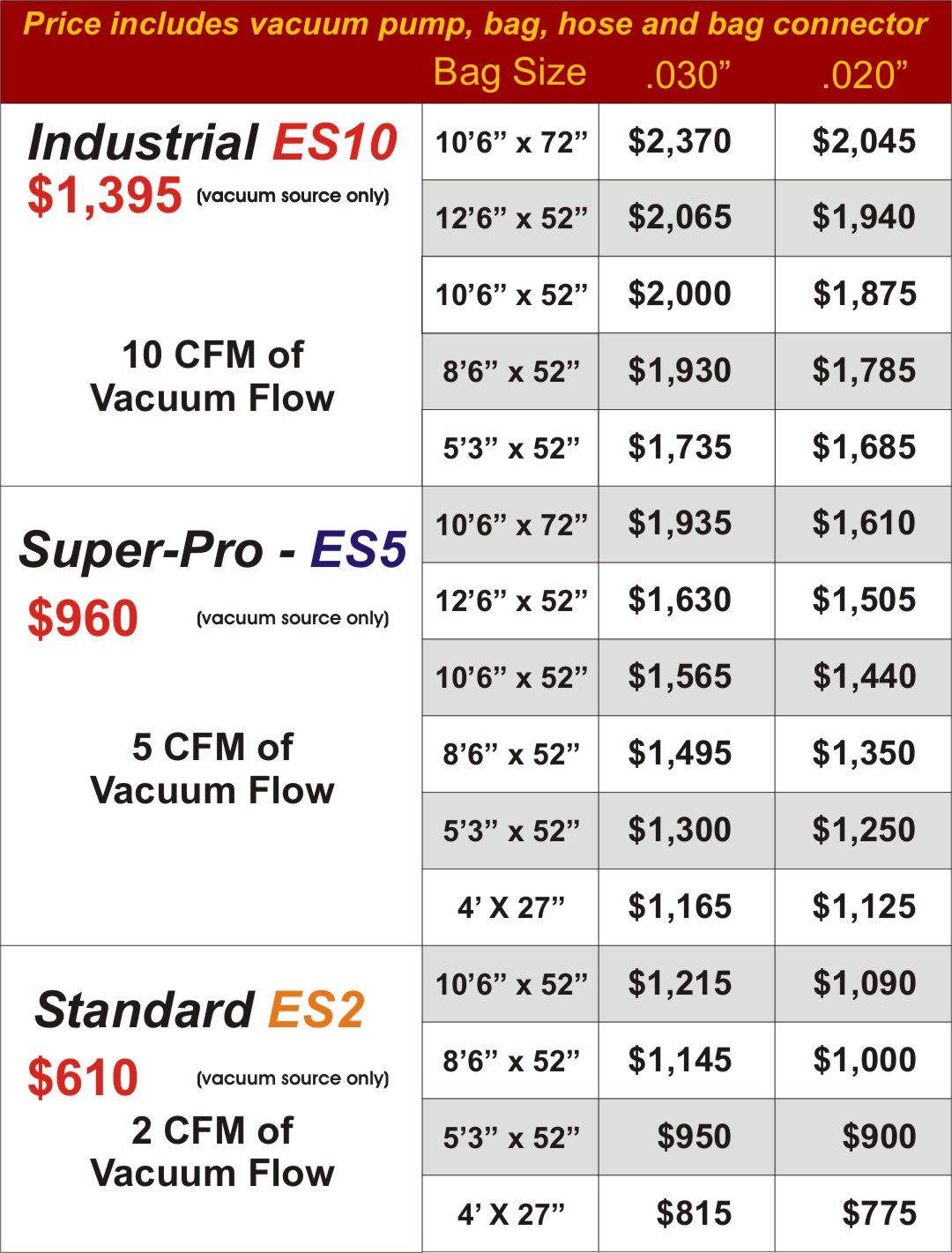

| System Description |
Bag Size |
Poly 30 Mil |
Poly 20 Mil* |
Vinyl 30 Mil |
Vinyl 20 Mil |
|
|||||
Industrial ES10
|
10'6" x 72" | n/a | $1,550 | n/a | n/a |
| 12'6" x 52" | $1,490 | $1,400 | 1,150 | $1,120 | |
| 10'6" x 52" | $1,420 | $1,345 | $1,130 | $1,100 | |
| 8'6" x 52" | $1,350 | $1,260 | $1,120 | $1,085 | |
| 5'3" x 52" | $1,235 | $1,180 | $1,065 | $1,030 | |
|
|||||
Super Pro ES5
|
10'6" x 72" | n/a | $1,280 | n/a | n/a |
| 12'6" x 52" | $1,220 | $1,130 | $880 | $850 | |
| 10'6" x 52" | $1,150 | $1,075 | $860 | $830 | |
| 8'6" x 52" | $1,080 | $990 | $850 | $815 | |
| 5'3" x 52" | $965 | $910 | $795 | $760 | |
* Note that only the 52" & 72" 20 Mil Polyurethane bags are seamless. |
|||||
| Return to top of Page | |||||
|

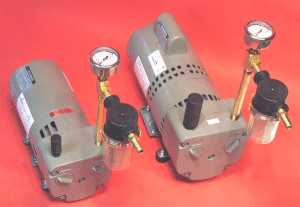

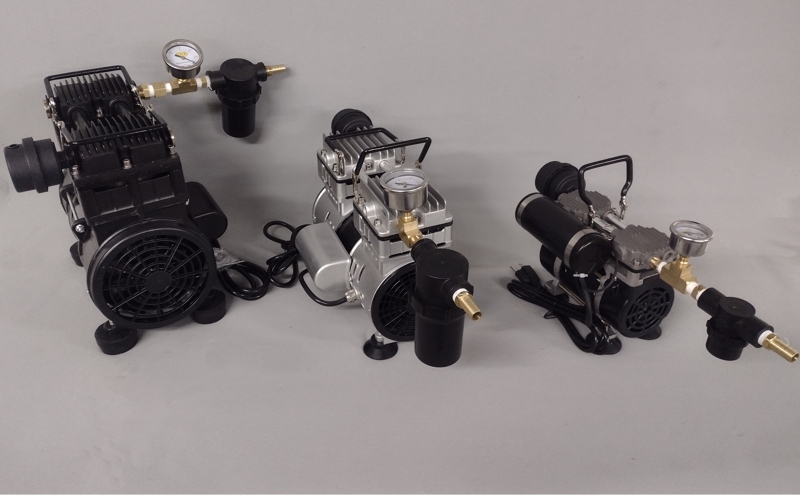

Manual Electric Systems Veneering & Laminating |
|
If funds are limited we offer a lower-priced Manual System which can be upgraded to an Automatic System in the future. This is a good starter system. The Manual System consists of a Rotary Vane Electric Vacuum Pump, a VAKuum bag, and all the accessories needed to Manually Veneer and Laminate. At any time, an Electric Controller can be added. You simply plug your pump into the controller and start the system. Without an Electric Controller, the Manual pump must be run continuously, or be turned On and Off by the operator. The pump has a rated life of 2 years of continuous operation.
|
| System Description |
Bag Size |
Poly 30 Mil |
Poly 20 Mil* |
Vinyl 30 Mil |
Vinyl 20 Mil |
|
|||||
Industrial EP10
|
12'6" x 52" | $1,308 | $1,218 | $968 | $938 |
| 10'6" x 52" | $1,238 | $1,163 | $948 | $918 | |
| 8'6" x 52" | $1,168 | $1,078 | $938 | $903 | |
|
|||||
Super Pro EP5
|
8'6" x 52" | $868 | $778 | $638 | $603 |
| 5'3" x 52" | $753 | $698 | $583 | $548 | |
| * Note that only the 52" 20 Mil Polyurethane bags are seamless. | |||||
|
|||||
| Return to top of Page | |||||
|
EP1 Kit Veneering and Laminating |
||
|
||
| Press with 1,700 lbs./sq.ft. of even and uniform pressure using a long life vacuum pump. (1 Year manufactures Guaranty). Make heirloom quality furniture and cabinets with our complete system which includes: | ||
Complete Electric Veneering System
|
||
|
||
|
Electric Vacuum Pump
$250.00
VAKuum Gauge VAKuum Filter Heavy Wall VAK Hose Brass Fittings Instructions 52" x 5'3" x .020" Vinyl Bag $80.00 VAKuum Connector Assembly (VCA) $20.00 78 Minute Instructional Video Retail $30.00
Regular Retail Price
$380.00
|
||
|
||
| Return to top of Page | ||
|
Electric Frame Press Systems Pressing |
|
The Q.V.P. Frame Press offers you the advantage of easier loading & unloading of your work. You can assemble your pieces directly on the table top, so its ideal for production of panels and large pieces.
The standard 6" high bag material allows you to do several stacks
of flat panels at a time, as well as some curved work. There is less chance
of your bag material to delaminate, as there are 90% less seams than in
a seamed bag. The top is made from one piece of material only 8" of seams in each corner.
|
| System Description |
Frame Press Sizes - Inside Dimensions | ||||
| 126" x 54" | 102" x 54" | 54" x 54" | 25" x 25" | ||
|
|||||
Super Industrial ES10
|
$1,750 | $1,700 | $1,500 | $1,275 | |
Super Pro ES5
|
$1,480 | $1,430 | $1,230 | $1,005 | |
|
|||||
| Prices for Frame Only | $800 | $750 | $550 | $325 | |
| Return to top of Page | |||||
Quality VAKuum Products, Inc. , (Q.V.P.) large 126" x 54" x 24"
and 102" x 54" x 24" Vacuum Frame Presses for shops requiring pressing of
several flat panels at the same time or large curved pieces. The 24" high
industrial grade polyurethane top permits stacking of several 4' x 10' or
4' x 8' panels in one pressing. This allows a shop tp lay-up the panels in
place and close the frame lid without having to slide the panels into a
vacuum bag. The 24" high top also allows for a large curved form to be used in the
frame press. It's faster and easier for production of large work than using
a vacuum bag to press veneer on flat or curved substrates.
Q.V.P. has been making large frame presses as special orders for years and has added the large press as a standard item. Medium sized shops do not need panel production equipment that cost tens of thousands of dollars. However, they do need the capacity to do limited production of flat or curved pieces that are difficult and time consuming to do with a mechanical press or a vacuum bag press. Large shops with high speed panels production equipment have purchases the large frame press to do prototypes or one-of-a-kind curved pieces. As one large shop production manager said at the 1997 Anahiem Show,"We get orders for 500 flat panels and then orders for 3 curved panels. We need to do them to satisfy our large account or we don't get the order for the 500 panels. Your large frame press allows us to do the curved work off line with high quality results."
|
| Products | Description | Price | |||
|
| |||||
| FP48-4 | 4' x 8' x 24" High Frame Press | $1,100 | |||
|
| |||||
| FP410-4 | 4' x 10' x 24" High Frame Press | $1,300 | |||
|
| |||||
| ES10 with a FP48-4 | 10 CFM electric automatic vacuum unit with a 4' x 8' x 24" high Frame Press | $2,050 | |||
|
| |||||
| ES10 with a FP410-4 | 10 CFM electric automatic vacuum unit with a 4' x 10' x 24" high Frame Press | $2,250 | |||
|
| |||||
| Return to top of Page | |||||
| Electric Controllers | |||||
|
|||||
Electric Controllers can be purchased separately if you already own an electric vacuum pump. This unit will regulate the correct vacuum level within your bag. It includes an adjustable vacuum sensor, a vacuum gauge, a circuit breaker, brass fittings, and a 3 way On/Off switch, all built into a controller box. Setup up is simple: plug your pump and electric controller together, plug the controller into the wall socket, connect your vacuum hose to the Electric Controller and to your pump, and turn the switch On. It's that easy!
|
|||||
| Return to top of Page | |||||
| Electric Pumps Wihtout Bags |
|
 System Includes
|
| System Description |
Price | Pump Size | Vacuum Flow | ||
|
|||||
| Industrial E10 | $695 | .75 H.P. | 10 C.F.M. | ||
| Super Pro E5 | $395 | .25 H.P. | 5 C.F.M. | ||
|
|||||
| Return to top of Page | |||||
|
EK1 Electric Clamping Kit |
|||||
|
|||||
Improve you productivity by turning your electric vacuum system into a hands free clamping system.  Includes:
Special Price- $165 normally $168 | |||||
| Return to top of Page | |||||
|
|||||
