Vacuum Frame Press for vacuum pressing-

Easy loading flip top vacuum frame press for veneering and laminating

spacer line
Flip Top Vacuum Frame Press      Aluminum Table Base      Wall Hung Frame Press  "The Space Saver"

Anatomy of a Q.V.P. Frame Press

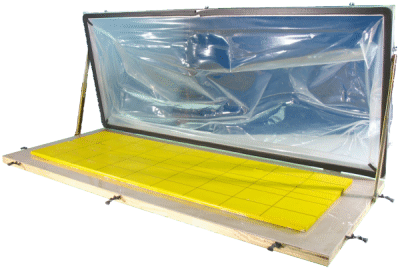

flip top vacuum frame press open   Flip Top Frame Press

A vacuum frame press allows for easier loading of large parts. It also allows for stacking of up to 20 panels in the 24" high frame press. Over size frame presses 5' x 24' x 36" high) have been fabricated. Extra high tops of up to 43" can be fabricated in days, not weeks. All of our frame presses are manufactured in house and stock frames ship usually within 24 hours. Custom frame presses usually ship within 2 - 3 days.



Advantages:
  • Quick loading and unloading of parts
  • One person can now veneer 4 X 8 panels easily
  • Load multiple smaller pieces more efficiently

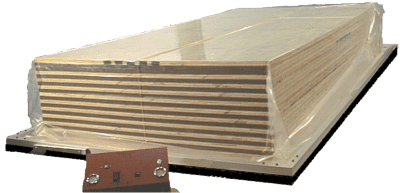

  • Can easily press up to 20 panels at once
  • Stock and Custom Sizes available

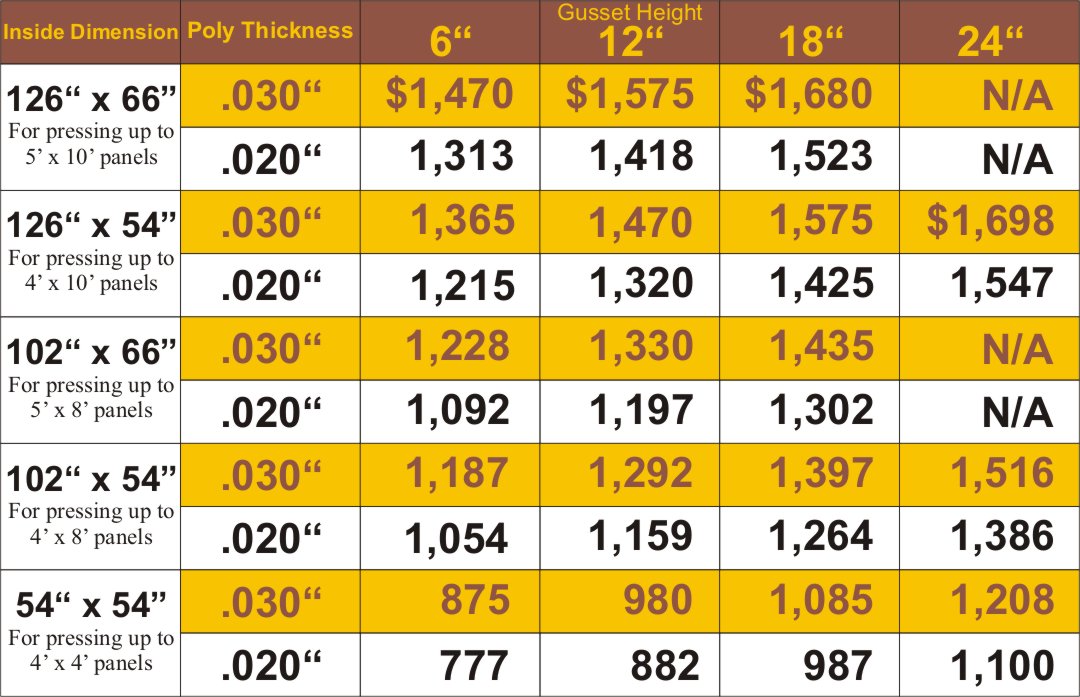

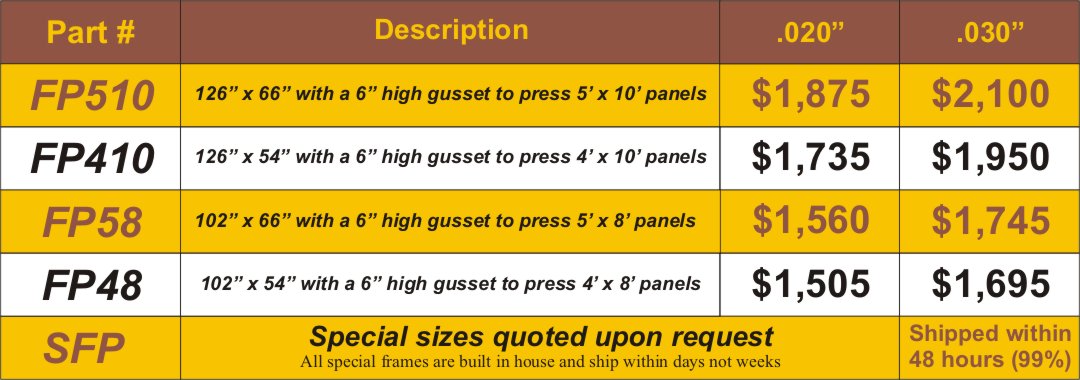

Part # FP510 FP410 FP58 FP48 FP44 FP22
Inside Dimensions 126" x 66" 126" x 54" 102" x 66" 102" x 54" 54" x 54" 25" x 25"
Tall
18" for 5' wide
24" for 4' wide

30 Mil Poly
NEW!!!
$1,895 $1,790 $1,680 $1,600 $1,150 $560
Standard
6" gusset
30 Mil Poly
NEW!!!
$1,395 $1,190 $1,350 $1,100 $900 $450
Tall
18" for 5' wide
24" for 4' wide
20 mill poly
$1,450 $1,350 $1,275 $1,150 $825 $400
Standard
6" gusset
20 Mil Poly
$995 $850 $950 $795 $565 $325
SFP

Custom

Special Sizes Quoted upon request

Shipped within     72 hours (99%)

The frames come in kit form. The aluminum frames have a doubled sided tape applied to the outside and underside to adhere the polyurethane top.
The corner angle irons slip into the frame and have screws to easily assemble the frame. You need to provide the table for the frame and detailed
instructions are included for proper table building procedures. The table and baseboard is not provided by Q.V.P.



  Structural aluminum table on caster for vacuum frame press

Shown table has optional casters.

Aluminum Table Frame

For a flip top vacuum frame press to work to it's full potential, it needs to have a smooth perfectly flat table top. We know that building this table top can be time consuming so let us make the table frame for you. Our aluminum tables are made of heavy duty slotted aluminum. They have been assembled in our shop and marked for easy re-assembly.



Advantages:
  • Strong extruded structure for your table base
  • Ensure a flat table for your Frame Press
  • Light weight but extremely sturdy
  • Get your frame press into production quickly
  • Stock and custom sizes available

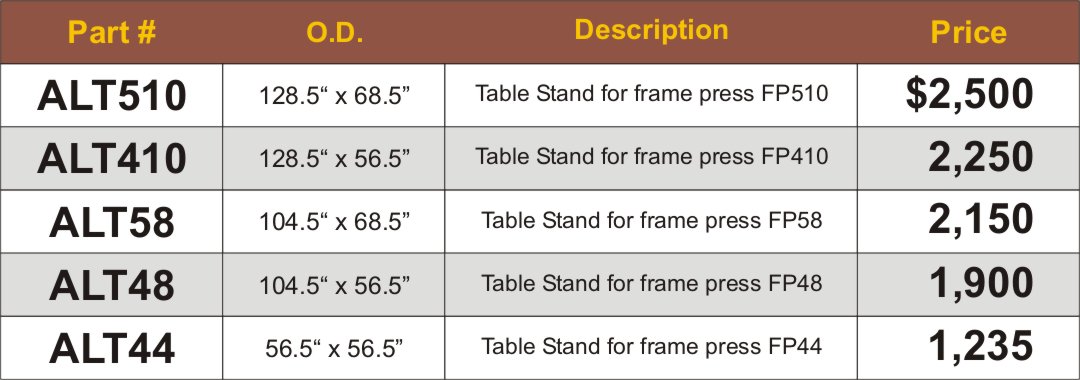

Length

Width 128.5" 102.5" 56.5"
68.5" $1,400 $1,200 N/A
56.5" $1,300 $1,110 $650

The aluminum tables are shipped in kit form. Aluminum table frames have been pre assembled in the Q.V.P. factory. While they are assembled
the pieces are marked for easy reassembly. The tables come with hex head driver for the bolts. You will need to provide a sheet of 3/4" mdf or
melamine coated particle board for the top with a sheet of smooth laminate. You will also have to provide a baseboard.

Structual aluminum close up extruded aluminum t nut assembly close up

  Vacuum frame press mounted to wall and folds up out of the way Wall Mounted Vacuum Press "The Space Saver"

For shops that have limited space but want and have a need for a frame press, you can have both. The new wall mounted vacuum frame allows you to have a flip top frame press and not permanently take up the space. You can even press flat panels with the unit in the upright position.



Advantages:
  • Folds up onto your wall
  • One person can now veneer 4 X 8 panels easily
  • Load multiple smaller pieces more efficiently
  • Significantly saves space



126" x 54" with a 6" high gusset to press 4' x 10' panels 300 lb max load  $2,250
102" x 54" with a 6" high gusset to press 4' x 8' panels 300 lb max load  $2,150

The price includes Frame press and Aluminum table frame. In addition the price includes hinges to attach the frame to your wall as well as leg folding hinges. These frames also have extra rails to prevent racking.

The aluminum tables are shipped in kit form. Aluminum table frames have been pre assembled in the Q.V.P. factory. While they are assembled the pieces are marked for easy reassembly. The tables come with hex head driver for the bolts. You will need to provide a sheet of 3/4" mdf or melamine coated particle board for the topped with a sheet of smooth laminate. You will also have to provide a baseboard. You will also have to build out from your wall a proper mount.

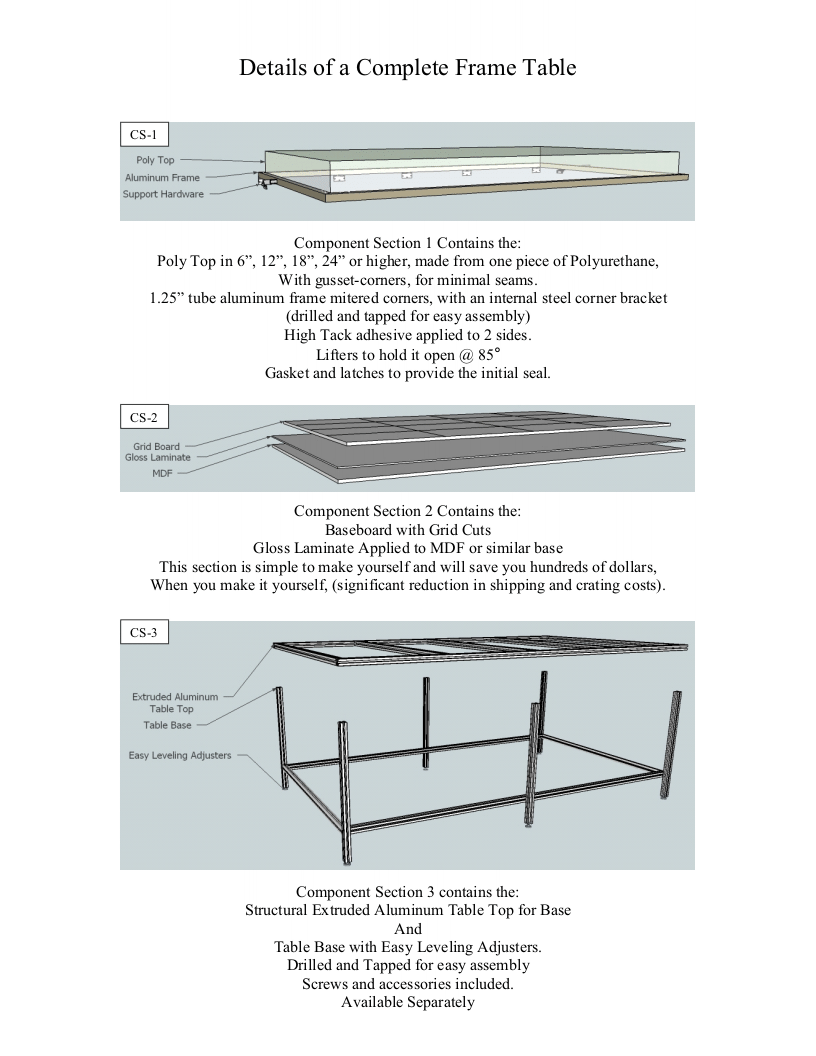

  Vacuum frame press components and structual anatomy

You supply only the MDF with Smooth Gloss Laminate and the grid board (Red Sections).

Can be supplied by Q.V.P. At additional charge and larger shipping expense.

Wall mounted vacuum frame press in motion
