The NU-Matic ALL-in-ONE air-operated vacuum pressing system comes; Foot Pedal, 100 foot roll of VAK-Tape, 7' of VAK Hose a set of template Quick Disconnects, and a Pinch Clamp. |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
 |
|||||
| Mega Industrial | NU20FS | 20.0 CFM | 26 CFM | 5 - 8 H.P. | $1,275 |
|
|||||
| Super Industrial | NU15FS | 15.0 CFM | 19.5 CFM | 5 - 8 H.P. | $1,175 |
|
|||||
| Industrial | NU10FS | 10.0 CFM | 13.0 CFM | 4 - 7 H.P. | $1,025 |
|
|||||
| SuperPro | NU6FS | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $825 |
|
|||||
| Pro | NU4FS | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $725 |
|
|||||
| Standard | NU2FS | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $650 |
| Return to top of Page | |||||
|
|||||
|
The NU-Matic air-operated vacuum pressing system comes with; 10 ft. of VAK-Hose |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
|
|||||
| Mega Industrial | NU20 | 20.0 CFM | 26 CFM | 5 - 8 H.P. | $1,100 |
|
|||||
| Super Industrial | NU15 | 15.0 CFM | 19.5 CFM | 5 - 8 H.P. | $1,000 |
|
|||||
| Industrial | NU10 | 10.0 CFM | 13.0 CFM | 4 - 7 H.P. | $850 |
|
|||||
| SuperPro | NU6 | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $650 |
|
|||||
| Pro | NU4 | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $550 |
|
|||||
| Standard | NU2 | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $475 |
| Return to top of Page | |||||
|
|||||
|
The ALL-in-ONE air-operated vacuum pressing and clamping system comes with; Foot Pedal, 100 foot roll of VAK-Tape, 7' of VAK Hose a set of template Quick Disconnects, and a Pinch Clamp. |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
|
|||||
| Super Industrial | VM15FS | 15.0 CFM | 19.5 CFM | 5 - 8 H.P. | $1,070 |
|
|||||
| Industrial | VM10FS | 10.0 CFM | 13.0 CFM | 4 - 7 H.P. | $870 |
|
|||||
| SuperPro | VM6FS | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $660 |
|
|||||
| Pro | VM4FS | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $590 |
|
|||||
| Standard | VM2FS | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $550 |
| Return to top of Page | |||||
|
|||||
|
The VAK-Matic air-operated vacuum pressing system comes with 7' of VAK-Hose. |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
|
|||||
| Super Industrial | VM15 | 15.0 CFM | 19.5 CFM | 5 - 8 H.P. | $930 |
|
|||||
| Industrial | VM10 | 10.0 CFM | 13.0 CFM | 4 - 7 H.P. | $730 |
|
|||||
| SuperPro | VM6 | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $530 |
|
|||||
| Pro | VM4 | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $450 |
|
|||||
| Standard | VM2 | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $410 |
| Return to top of Page | |||||
|
|||||
|

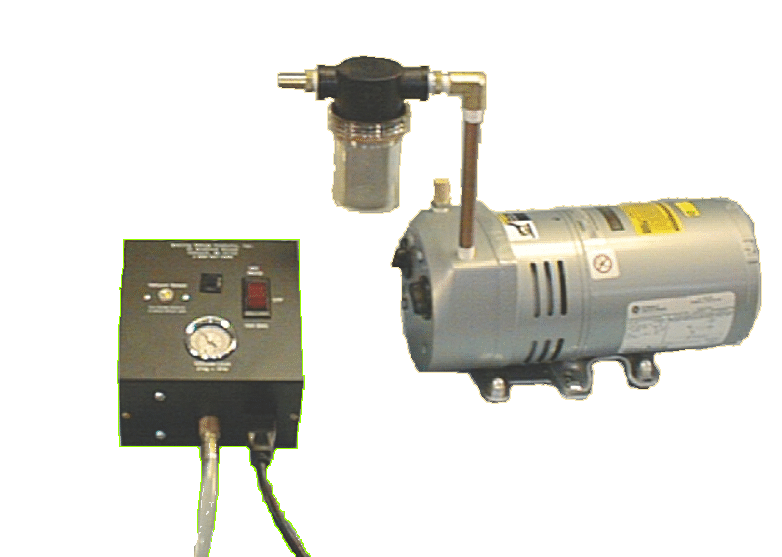

The ES system comes with Electric Pump, Electric controller, 10' 1/2 i.d. tubing and 5' of 3/8" i.d. tubing. |
|
|
| Model | Part# | Vacuum Flow | Pump Size | Price |
|
|||||
| Industrial | ES10 | 10.0 CFM | 3/4 H.P. | $950 | |
|
|||||
| SuperPro | ES5 | 5.0 CFM | 1/4 H.P. | $680 | |
| Return to top of Page | |||||
|
|||||

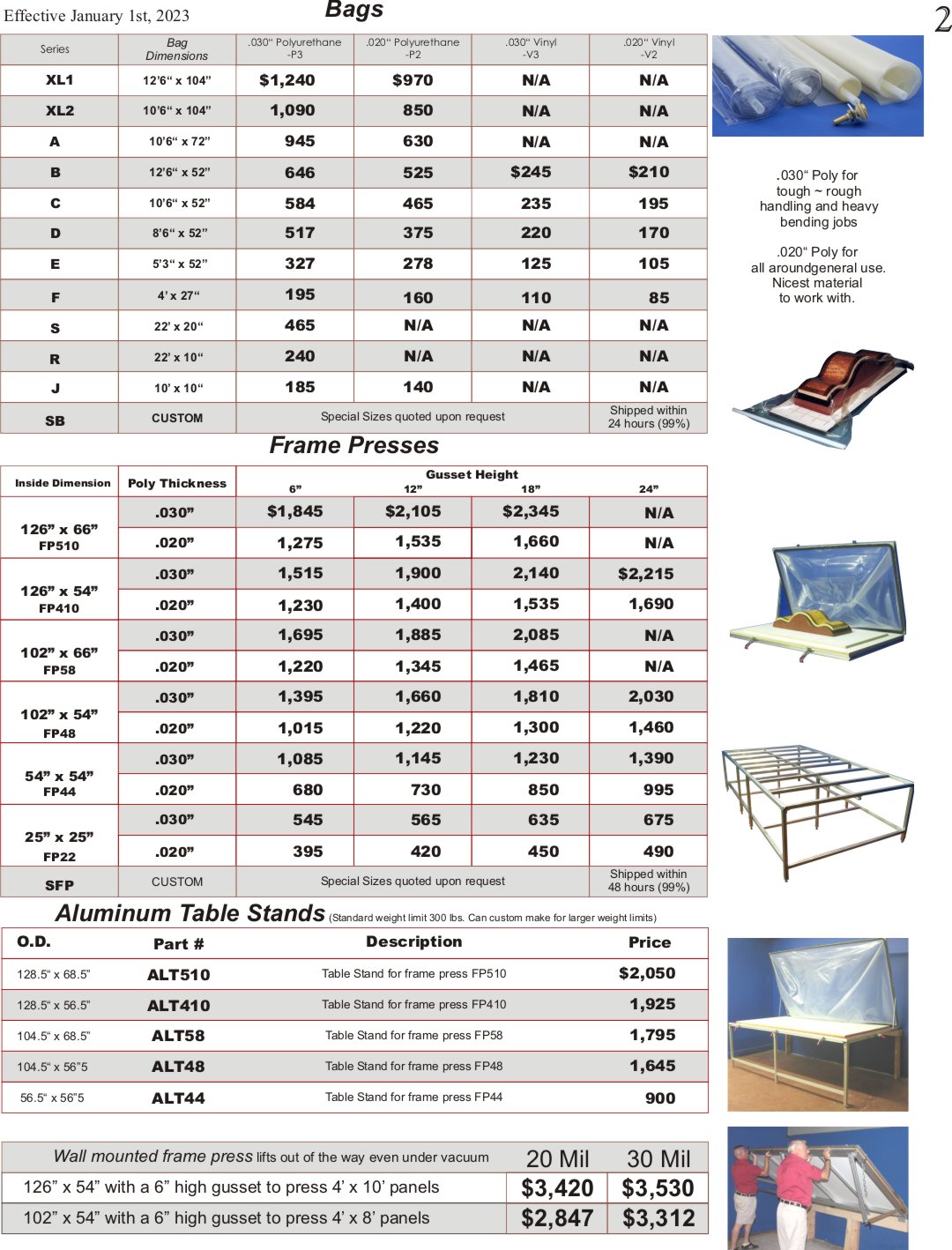

Standard Bags
|
Long Narrow Bags
|
Longer Narrow Bags
|
|
|
|

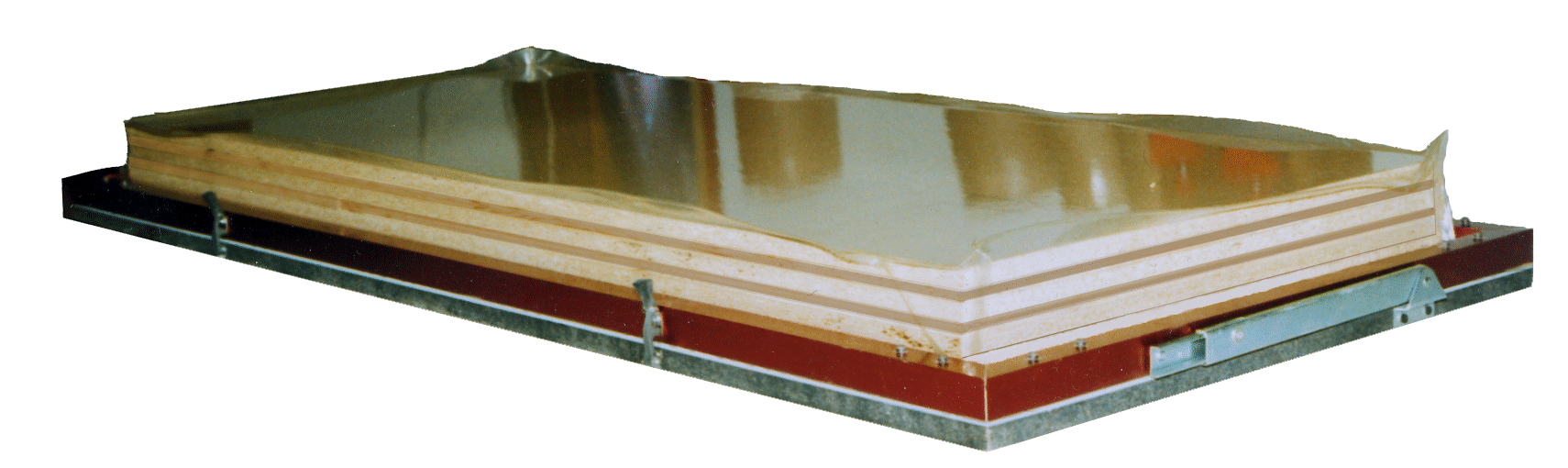

Frame Presses come complete with 6" or 24" high gusset top, Aluminum Frame, Stay Lifters, Rubber Snap Clamps, Bleeder valve, and High Tack Sealant Tape. |
|
|
|

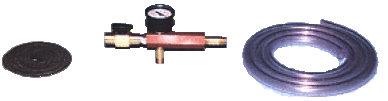

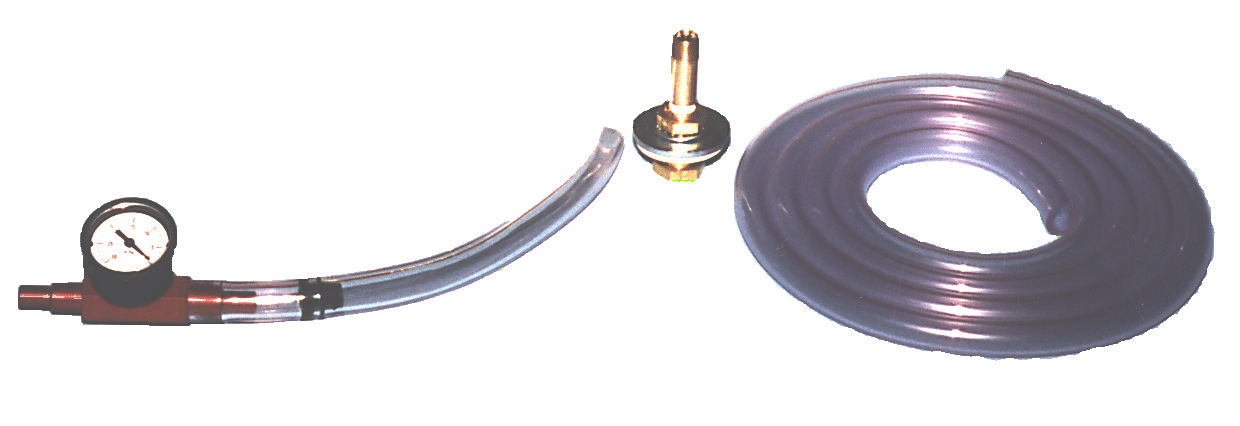

Bag Kits are used with manual veneering systems and include; VCA or VCA6, 7' of tubing, and a manifold with inline check valve. |
|
|
| Part # | Description | Price |
|
|||||
| VCA6W | VAKuum Connector Assembly for bags without baseboards for 1/2" i.d. tubing | $24 | |||
|
|||||
| VCA4W | VAKuum Connector Assembly for bags without baseboards for 3/8" i.d. tubing | $20 | |||
|
|||||
| VCA6 | VAKuum Connector Assembly for 1/2" i.d. tubing | $22 | |||
|
|||||
| VCA4 | VAKuum Connector Assembly for 3/8" i.d. tubing | $20 | |||
|
|||||
| MCA6 | Manifold with guage and check valve for 1/2" I.D. Tubing | $55 | |||
|
|||||
| MCA4 | Manifold with guage and check valve for 3/8" I.D. Tubing | $55 | |||
|
|||||
| BKA6 | Bag Kit complete with VCA6, MCA6, and 7' of 1/2 I.D. Tubing | $73 | |||
|
|||||
| BKA4 | Bag Kit cmplete with VCA, MCA, and 7' of 3/8" I.D. Tubing | $70 | |||
| Return to top of Page | |||||
|
|||||
|
Manifold for operating more than one bag or frame press at the same time. Includes brass fittings, shut off valves and hose. Each gated port comes with 10' of tubing. |
|
|
| Part # | Description | Price |
|
|||||
| BM2-B | Two bag manifold for SuperPro Systems 1/2" I.D. Hose | $75 | |||
|
|||||
| BM2-C | Two bag manifold for Industrial and Super Industrial Systems | $120 | |||
|
|||||
| BM3-B | Three bag manifold for SuperPro Systems 1/2" I.D. Hose | $125 | |||
|
|||||
| BM3-C | Three bag manifold for Industrial and Super Industrial Systems | $150 | |||
| Return to top of Page | |||||
|
|||||
|
|
| Part # | Description | Price |
|
|||||
| VB2000-6 | 6 lbs. of VAK-Bond 2000 - Makes over 1 gallon of glue | $29 | |||
|
|||||
| VB2000-25 | 25 lbs. of VAK-Bond 2000 | $102 | |||
|
|||||
| VB2000-50 | 50 lbs. of VAK-Bond 2000 | $180 | |||
|
|||||
| VB2000-100 | 100 lbs. of VAK-Bond 2000 | $295 | |||
|
|||||
| VKS | 1/2 gallon veneer softner makes one gallon | $20 | |||
|
|||||
| VBM15 | 15" glue mixer stainless steel | $17 | |||
|
|||||
| VKT | 1 lb. white powder tint for VAK-Bond 2000 | $8 | |||
|
|||||
| VBSPC | Special Glue Kit includes: VB2000-6, VBM15, and VKT | $47 | |||
| Return to top of Page | |||||
|
|||||
|

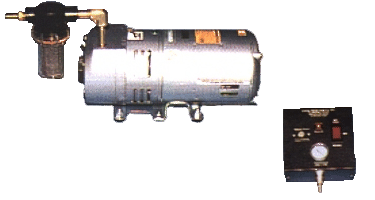

Electric pump includes External filter and brass fittings. Electric controllers includes adjustable Vak-Sensor, Vak Gauge, check valve, VAK Hose, and 3 position switch. |
|
|
| Model | Part # | Pump size | Price |
|
|||||
| Industrial | EP10 | 3/4 H.P. | $695 | ||
|
|||||
| SuperPro | EP5 | 1/4 H.P. | $395 | ||
|
|||||
| Electric Controller | EC | Up to 3/4 H.P. | $290 | ||
| Return to top of Page | |||||
|
|||||
|
Let our wide variety of veneering accessories assist you in you veneering and laminating needs. |
|
|
| Part # | Description | Price |
|
|||||
| VK1 | Includes: GS5, SC, VC1, RB10, and PT | $229 | |||
|
|||||
| VK2 | Includes: GS7, SC, VC1, RB10, and PT | $339 | |||
|
|||||
| SC | Storage container for both GS5 and GS7 | $59 | |||
|
|||||
| VC | Veneer cutter with guiding fence and blade | $48 | |||
|
|||||
| RB10 | 10 veneer cutter replacement blades | $19 | |||
|
|||||
| HVT | Hand veneer taper | $195 | |||
|
|||||
| PT | 650' roll of brown paper veneering tape | $6 | |||
|
|||||
| GS5 | Glue spreader with 5 1/2" grey rubber roller | $129 | |||
|
|||||
| GS7 | Glue spreader with 7" grey rubber roller | $239 | |||
|
|||||
| DR5 | Replacement doctor roller for 5 1/2" glue spreader | $20 | |||
|
|||||
| DR7 | Replacement doctor roller for 7" glue spreader | $25 | |||
|
|||||
| GR5 | Replacement rubber roller for 5 1/2" glue spreader | $25 | |||
|
|||||
| GR7 | Replacement rubber roller for 7" glue spreader | $30 | |||
| Return to top of Page | |||||
|
|||||
|
Air-Powered manual pump kits include; VAK-Pump, 5' VAK-Hose, 10' VAK-Tape, VAK-Gauge, Brass Fittings, and ON/OFF Valve |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
|
|||||
| Industrial | VP10 Kit | 10.0 CFM | 13.0 CFM | 4 - 7 H.P. | $275 |
|
|||||
| SuperPro | VP6 Kit | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $175 |
|
|||||
| Pro | VP4 Kit | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $140 |
|
|||||
| Standard | VP2 Kit | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $99 |
| Return to top of Page | |||||
|
|||||
|

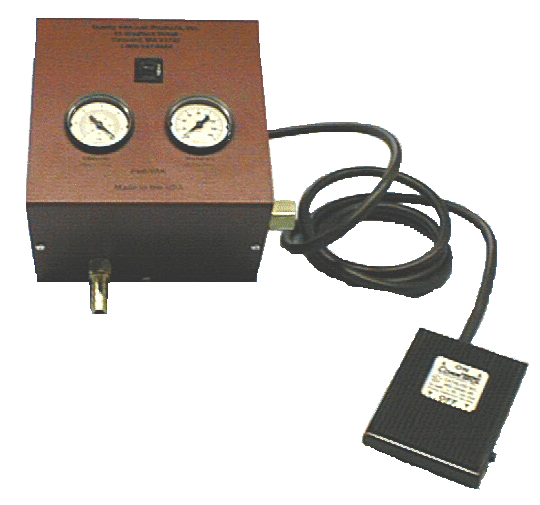

Ped-VAK's include; Foot Switch, VAK-gauge, pressure gauge, 100' VAK-Tape, and 5' VAK-Hose |
|
|
| Model | Part# | Vacuum Flow | Compressed Air Needed @85 p.s.i. | Compressor Size (Approx.) | Price |
|
|||||
| SuperPro | PV6 | 5.2 CFM | 6.5 CFM | 2 - 4 H.P. | $315 |
|
|||||
| Pro | PV4 | 3.2 CFM | 4.0 CFM | 1 - 2 H.P. | $275 |
|
|||||
| Standard | PV2 | 1.8 CFM | 2.0 CFM | .75 - 1 H.P. | $240 |
| Return to top of Page | |||||
|
|||||
|
Template quick disconnects for fast and easy access to your clamping jigs. |
|
|
| Part # | Description | Price |
|
|||||
| QD1 | 1 female, 5 males, and one tee for 3/8" I.D. hose | $16 | |||
|
|||||
| QD10 | 1 female, 10 males, and one tee for 3/8" I.D. hose | $27 | |||
|
|||||
| QD25 | 2 female, 25 males, and 2 tee for 3/8" I.D. hose | $50 | |||
|
|||||
| QDM | Male quick disconnect for 3/8" I.D. hose | $2.25 | |||
|
|||||
| QDF | Female quick disconenct for 3/8" I.D. hose | $4.50 | |||
|
|||||
| CROSS | Plastic cross for 3/8" I.D. hose | $2 | |||
|
|||||
| TEE | Plastic tee for 3/8" I.D. hose | $2 | |||
| Return to top of Page | |||||
|
|||||
|

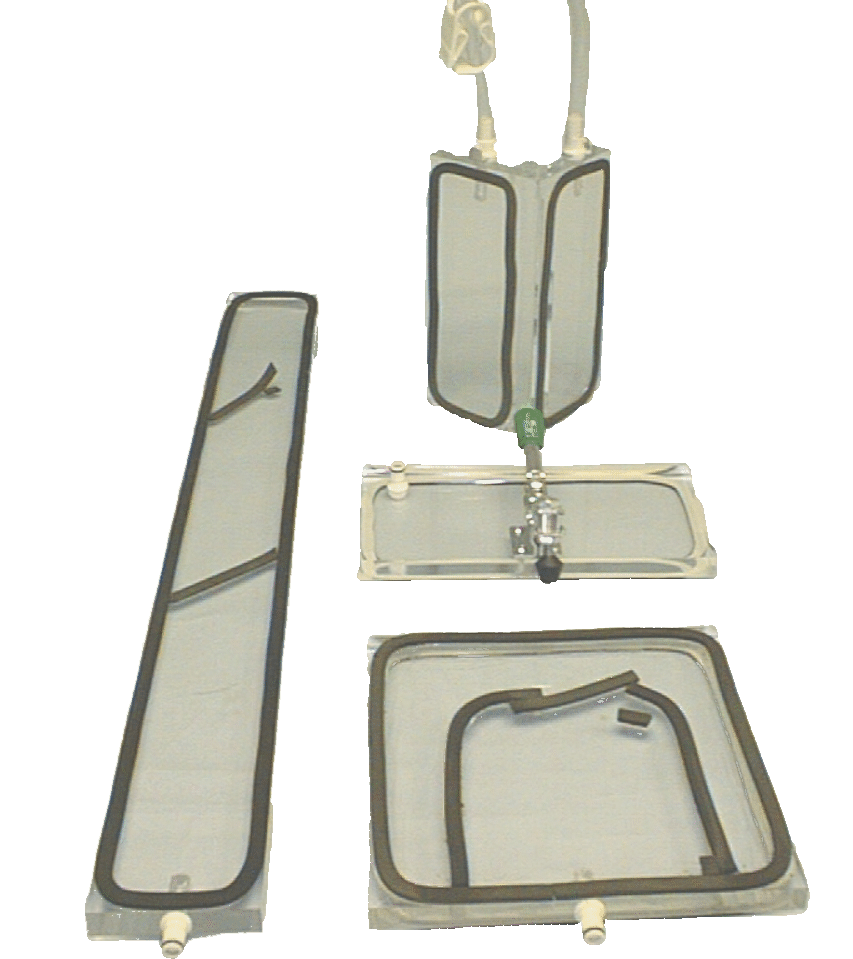

Make your vacuum clamping jobs easier with our acrylic vacuum jigs |
|
|
| Part # | Description | Price |
|
|||||
| SE48 | Straight Edge (48" Long) | $63 | |||
|
|||||
| SE30 | Straight (30" Long) | $42 | |||
|
|||||
| RTA | Right Angle Klamp | $75 | |||
|
|||||
| BP1 | Base Plate (9" x 9" x 3/4") | $32 | |||
|
|||||
| TG1 | Toggle VAK Klamp | $50 | |||
|
|||||
| AS4 | Acrylic Slab (4' x 1' x 3/4") Make your own Jigs | $100 | |||
|
|||||
| KK1(set) | SE30, RTA, and BP1 | $138 | |||
|
|||||
| KK2(set) | SE48, RTA, BP1 | $158 | |||
|
|||||
| KK3(set) | SE30, RTA, BP1, and TG1 | $185 | |||
| Return to top of Page | |||||
|
|||||
|
Closed cell neoprene tape used for creating a vacuum chamber in your vacuum template or jig. |
|
|
| Part # | Description | Price |
|
|||||
| VT100 | VAK Tape 100' | $40 | |||
|
|||||
| VT50 | VAK Tape 50' | $25 | |||
|
|||||
| VT25 | VAK Tape 25' | $18 | |||
|
|||||
| VT10 | VAK Tape 10' | $10 | |||
|
|||||
| VT1 | VAK Tape 1' wide x 1/8" thick | $10/ft. | |||
|
|||||
| FPT40 | Frame Press Tape 40' | $40 | |||
| Return to top of Page | |||||
|
|||||
|
Heavy wall vak hose 3/8" and 1/2" I.D. |
|
|
| Part # | Description | Price |
|
|||||
| VH25 | Heavy Wall VAk 3/8" I.D. 25' | $20 | |||
|
|||||
| VH15 | Heavy Wall VAk 3/8" I.D. 15' | $15 | |||
|
|||||
| VH252 | Heavy Wall VAk 1/2" I.D. 25' | $25 | |||
|
|||||
| VH152 | Heavy Wall VAk 1/2" I.D. 15' | $20 | |||
| Return to top of Page | |||||
|
|||||
|
Pinch clamp for quick on/off vacuum ports. |
|
|
| Part # | Description | Price |
|
|||||
| PK1 | 1 Pinch Klamp, 1' of 3/8" I.D. soft tubing, and 1 tee | $7 | |||
|
|||||
| PK4 | 4 Pinch Klamp, 4' of 3/8" I.D. soft tubing, 1 cross, and 1 tee | $20 | |||
| Return to top of Page | |||||
|
|||||
Allows for hand free operation
|
Helps turn your electric vacuum pump into an efficent klamping system
|
|
|
| Part # | Description | Price |
|
|||||
| PFS | Pnuematic foot switch used with electric pumps in the klamping application | $100 | |||
|
|||||
| FSE | Electric foot switch for Electric Pumps and Electric Systems | $50 | |||
|
|||||
| FSV | Electric foot switch for VAK-Matic systems and Ped-Vak's | $40 | |||
| Return to top of Page | |||||
|
|||||
|
Improve you productivity by turing your electric vacuum system into a hands free clamping system. |
|
|
| Part # | Description | Price |
|
|||||
| EK1 | PFS, PK1, QD1, VT100 & 10' VAK Hose | $165 | |||
| Return to top of Page | |||||
|
|||||
|
|
| Part # | Description | Price |
|
|||||
| IFF | (2)Internal felt filters for electric pumps | $10 | |||
|
|||||
| VNS10 | (4)Carbon fiber vanes for electric pump 10 CFM | $90 | |||
|
|||||
| VNS5 | (4)Carbon fiber vanes for electric pump 5 CFM | $65 | |||
|
|||||
| ORS | (2)O rings for IFF | $5 | |||
|
|||||
| EP5EM | Exhaust muffler for E5 pump | $10 | |||
|
|||||
| EP10EM | Exhaust muffler for E10 pump | $15 | |||
| Return to top of Page | |||||
|
|||||
|
|

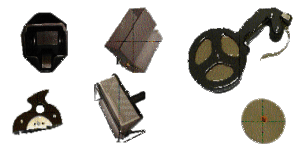

| Part # | Description | Price |
|
|||||
| AR10 | Air Regulators for VM15FS, VM15, VM10FS, and VM10 | $60 | |||
|
|||||
| AR | Air Regulators for VM6FS, VM6, VM4FS, and VM4, VM2FS, and VM2 | $40 | |||
|
|||||
| FLTE | Vacuum filter for all air-operated and electrical systems | $48 | |||
|
|||||
| FLTK | Air filter for all air-operated systems | $48 | |||
|
|||||
| COLFL | Coalescing Air Filter removes water and oil from your compressed air | $60 | |||
|
|||||
| VSE | Vacuum Sensor for Electric Controller | $60 | |||
|
|||||
| VSM | Vacuum Sensore for VAK-Matics and ALL-in-ONE unit | $50 | |||
|
|||||
| CB3 | 3 amp circut breaker (Air-Powered Units) | $15 | |||
|
|||||
| CB15 | 15 amp circut breaker (for electric controller) | $20 | |||
|
|||||
| ON/OFF | On/Off switch for VM's, VMFS's and EC's, water tight | $30 | |||
|
|||||
| SOL | Solenoid for VM's VMFS's and PV's | $40 | |||
|
|||||
| RLY | Relay switch for electric controllers | $60 | |||
| Return to top of Page | |||||
|
|||||
|
|
| Part # | Description | Price |
|
|||||
| PGP | Pressure gauge for PV's and VP's | $20 | |||
|
|||||
| PGC | Pressure gauge for VM's and VMFS's | $30 | |||
|
|||||
| VGP | Vacuum gauge for PV's Manifolds, EP's and VP's | $20 | |||
|
|||||
| VGC | Vacuum gauge for VM's, VMFS's and EC's | $30 | |||
| Return to top of Page | |||||
|
|||||
|
|

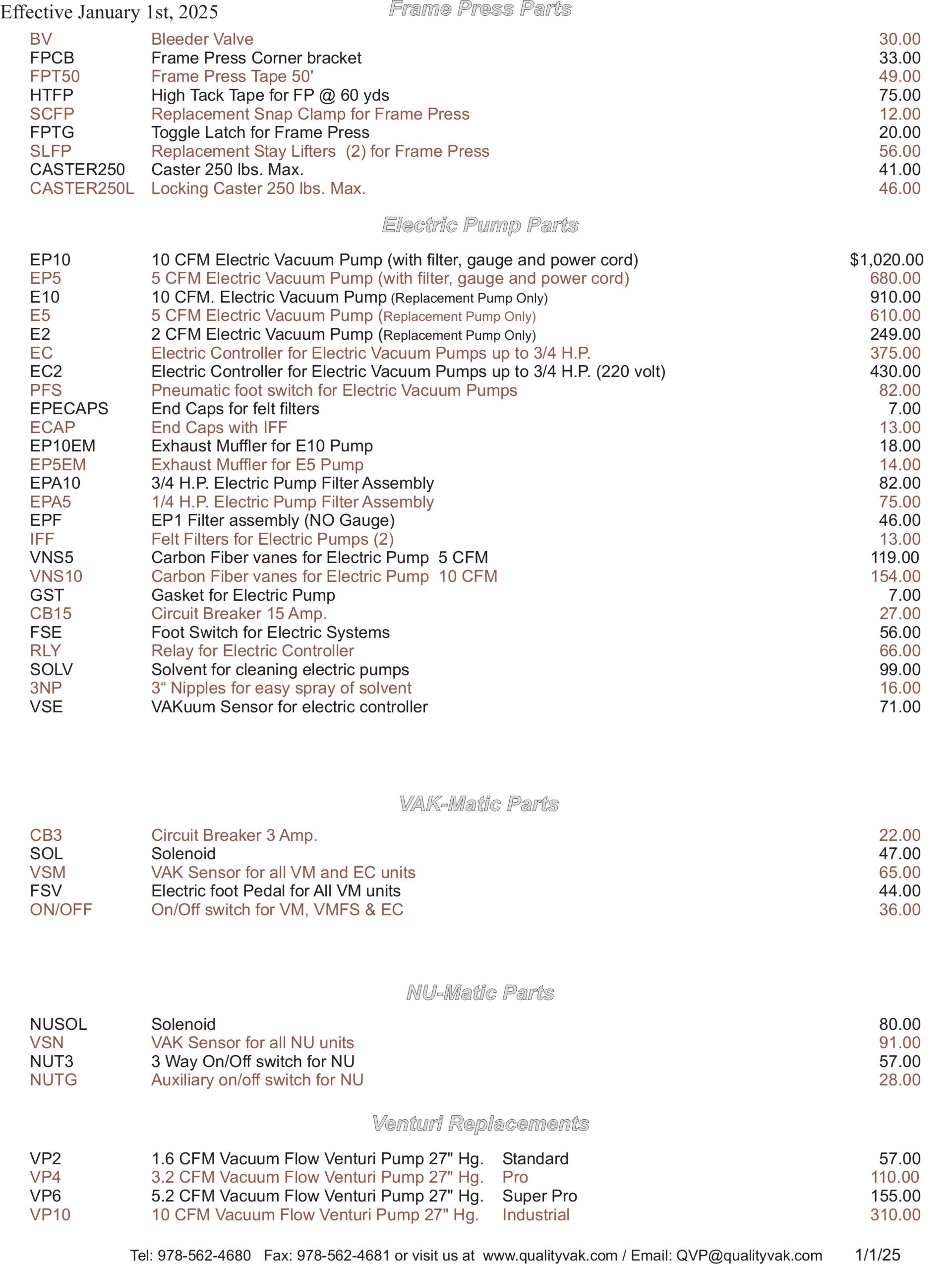

| Part # | Description | Price |
|
|||||
| ONV | On/Off valve for VP's | $15 | |||
|
|||||
| BV | Bleeder Valve for Frame Press | $20 | |||
|
|||||
| SCFP | Snap Clamps for frame press | $7 | |||
|
|||||
| HTFP | High tack tape for frame press (60 Yard Roll) | $45 | |||
|
|||||
| SLFP | Stay lifter for frame press(set) | $36 | |||
|
|||||
| CVB | Brass Check valve for ES10's | $40 | |||
|
|||||
| CV.5 | 1/2" in line check valve | $18 | |||
|
|||||
| CV.375 | 3/8" in line check valve | $12 | |||
|
|||||
| CC | 54" C Channel closure for VAK Bags | $17 | |||
|
|||||
| CC2 | 72" C Channel closure for VAK Bags | $25 | |||
|
|||||
| Patch Kit | Patch Kit for all bags | $10 | |||
| Return to top of Page | |||||
|
|||||
|
Individual venturi pumps |
|
|
| Part # | Description | Price |
|
|||||
| VP10 | 10 CFM Vacuum Flow Venturi Pump 27" Hg. Industrial | $250 | |||
|
|||||
| VP6 | 5 CFM Vacuum Flow Venturi Pump 27" Hg. SuperPro | $130 | |||
|
|||||
| VP4 | 3.2 CFM Vacuum Flow Venturi Pump 27" Hg. Pro | $95 | |||
|
|||||
| VP2 | 1.6 CFM Vacuum Flow Venturi Pump 27" Hg. Standard | $50 | |||
| Return to top of Page | |||||
|
|||||
